Steel Body PDC Bits

5-Axis pecision milling to get what you want!

  • Steel body construction absorbs shock loads prolonging cutter life.
  • Extensive hardfacing prolongs bit life.
  • Removable nozzles for customizing the TFA of each application.
  • Available in many PDC bit sizes and styles, with a wide selection of PDC cutter sizes and number of blades and nozzles.

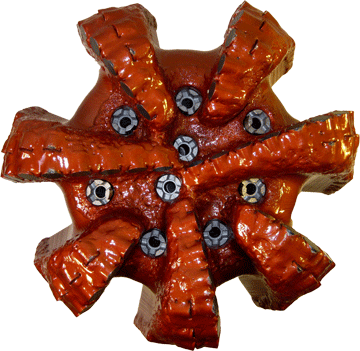

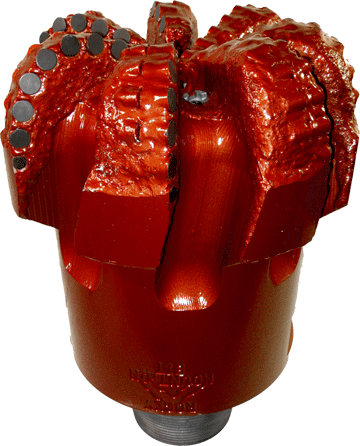

Rocky Mountain Steel Body PDC Bit





Rocky Mountain Steel Body PDC Bit

Click on link below to view Data Sheet RMB Nomenclature



Size Type

Cutter Size

# of Blades # of Nozzles Backup Cutters
11.000" RMB S568X 16mm 6 8 13mm
  RMB S657X 19mm 5 7 16mm
12.250" RMB S505R 16mm 0 5 none
  RMB S568X 16mm 6 8 13mm
13.500" RMB S668 19mm 6 8 none
  RMB S557 16mm 5 7 none
14.750" RMB S679X 19mm 7 9 16mm
  RMB S6612RX 19mm 6 12 16mm
  RMB S579 16mm 7 9 none
17.500" RMB S6818X 19mm 8 18 16mm



Back to Products







Rocky Mountain Bit
999 W. 400 N. (P.O. Box 817)
Moab, UT 84532

435-259-7763
